Ceramic-Spiral Multifunctional Lab Equipment
Basic information
Model:CSM
Process capacity:30-60L/H
Membrane element:French original imported ceramic membrane; 1812 spiral-wound membrane
Contact material:Material AISI 304, food grade hose
Material circulation tank:Effective volume V=30L

Description Specification Optional items

System Survey



CSM can be applied to microfiltration, ultrafiltration and fine ultrafiltration
It can do the membrane selection according to the size of the molecular weight
   and separate the material of 1.4μm-1KD

It has the advantages like easy and flexible operation, and easy cleaning, etc










Power Unit

 1a.jpg Imported GRUNDFOS pump

 1a.jpg Inverter control

 1a.jpg With high pressure protection device

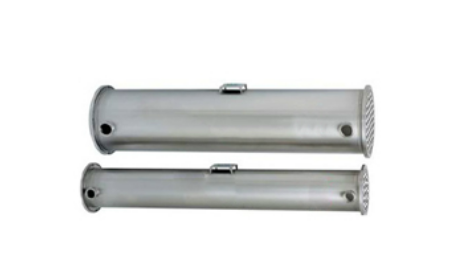

Membrane Shell

1a.jpg PH range:0-14

1a.jpg Working pressure:<95℃

1a.jpg  Maximum working pressure:<10bar

1a.jpg  Connection type:ANSI flange type connection










Ceramic Membrane Element

 1a.jpg French original imported ceramic membrane

 1a.jpg Membrane model :φ25mm:580/1178mm

 1a.jpg Range of application:Microfiltration, ultrafiltration and fine ultrafiltration






Electrical Control Cabinet

 1a.jpg Online monitoring of temperature, pressure and liquid velocity

 1a.jpg Pump frequency conversion controller, real-time display speed, frequency
 1a.jpg Temperature and pressure preset alarm










 Material Standard


 1a.jpg Contact material part: Material AISI 304, food grade hose material circulation tank

 1a.jpg Non-contact material: Material AISI 304, carbon steel + spray paint

 1a.jpg Pipeline:Sanitary seamless stainless steel tube

 1a.jpg Valve:Food grade health level direct ball valve
diaphragm valve
