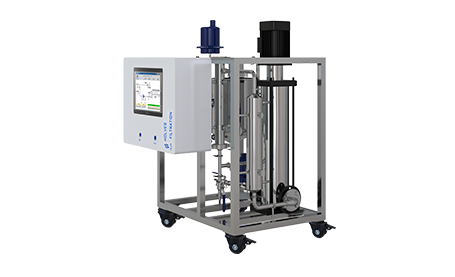

Multifunctional Membrane Separation Device Multi SM-A1812
Basic information
● Model:Multi SM-A1812
● Process Capacity:2~7L/H
 Membrane Element:GE imported original roll type membrane, single membrane area 0.26㎡
 Power Unit:Imported GRUNDFOS pump, 026Bar(Adjustable frequency
 Material Circulation Tankeffective volumeV=10L
Description Specification Optional items
System Survey

●
Laboratory type Multi SM-A1812(automatic type)is mainly used for separation and purification of ultrafiltration(UF), nanofiltration (NF), reverse osmosis (RO), which can be filtered, decolorized, desalted, purified, concentrated.

● According to the size of the molecular weight of the separated material, the selection of the membrane was carried out, and the material of 0.03μm to 100dalton could be separated.

● The equipment has the advantages of easy cleaning and maintenance and great freedom of use, etc.











Power Unit


● Imported GRUNDFOS pump

● Variable frequency control, 20 ~ 50Hz adjustable, wide range use

Flow:200~1100L/H

Pressure:0~26Bar adjustable









Membrane Shell

3 pieces in parallel

● Connection mode: high pressure clamp quick disconnection, withstand voltage 20Mpa

Material:AISI 304

● Surface treatment: external surface brushed, inner surface polishing, food hygiene grade.










Roll Type Membrance Element

● GE imported original roll type membrane, 3 pieces

● Membrane Model:1812 Industrial separation film, anti-pollution film

● Range of application:MF, UF, NF, RO

● According to the user's process, 1812 with different brand membranes and  with the same specifications can be selected, including homemade roll membranes











Control Cabinet

● Instrument control cabinet on site

● Control Mode:  PID Instrument control, automatic adjustment

● Sensor: temperature electrode, pressure sensor, variable frequency motor


● Flowmeter: field flow meter, manual adjustment

Instrument: four-in-one display + control instrument, variable frequency regulator








Material Standard

● Contact material part: Material AISI 304, food grade hose

● Non-contact material part: Material AISI 304, carbon steel + spray paint

● Pipeline:  Sanitary seamless stainless steel tube

● Valves: Food Grade Sanitary Ball Valves, Diaphragm Valves
